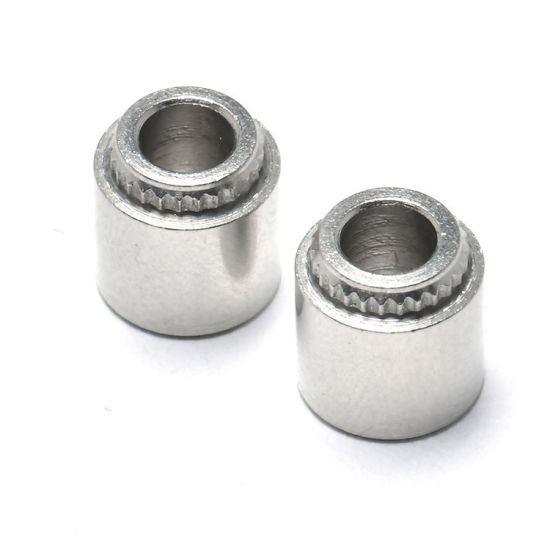

product name：standoffs for use in pc boards
Product features and selling points:
Installed on the PC board for spacing or fixing, and the unique bottom-end expansion function can increase the push-out resistance. The pressing material is divided into carbon steel KFE and stainless steel KFES. After riveting and pressing into the PC board, the embossed stud of this type has a protruding height L (see the table below), which should support the distance between the two PCs and the chassis, according to the user. Choose different heights according to your needs.

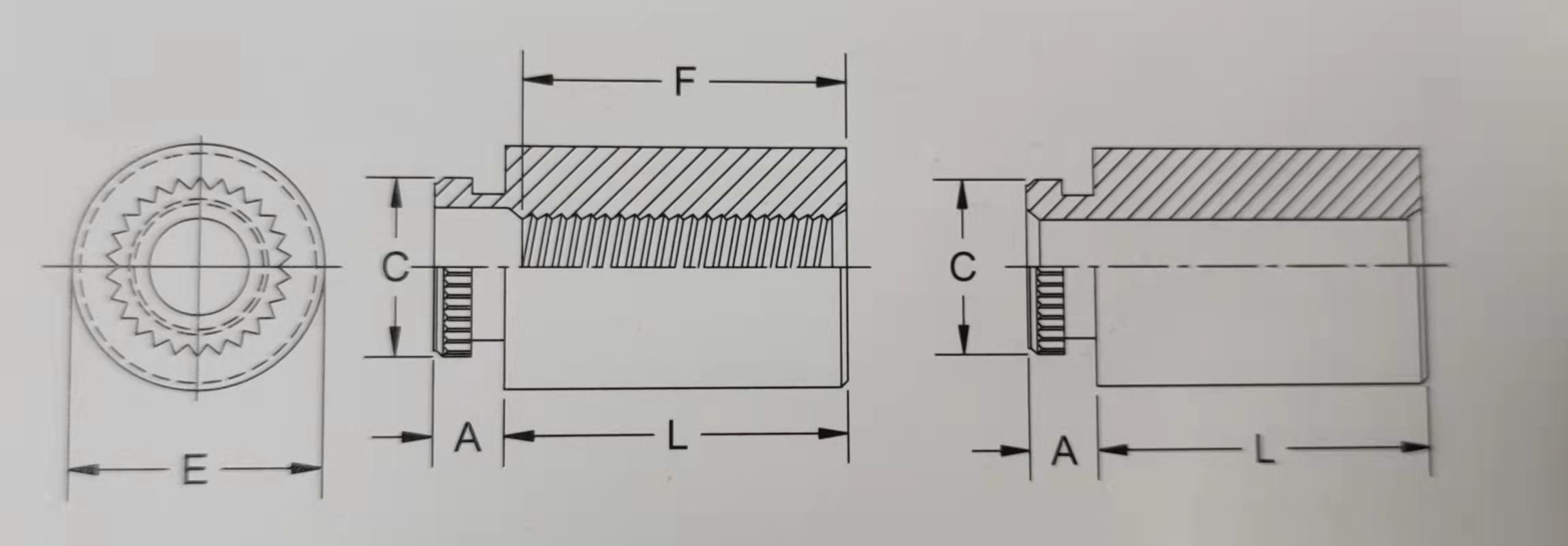

standoffs for use in pc boards Specification Table
For detailed specifications, click the appendix above to view
standoffs for use in pc boards Surface treatment and scope of application
1. 1. KFE is made of heat-treated carbon steel, plated with white zinc, suitable for sheet hardness equal to or less than HRB 70.
2. KFSE is manufactured from 300 series stainless steel, passivated or tested in accordance with ATSM-A380, suitable for sheet hardness equal to or less than HRB 70.
standoffs for use in pc boards functional description

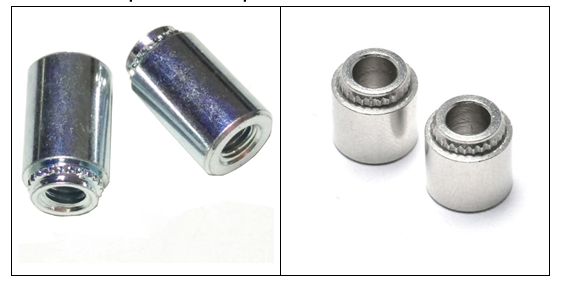

Applicable to: information communication, automation and control, electric power, transportation, medical treatment, electronic appliances, aerospace, new energy, etc.standoffs for use in pc boards picture
standoffs for use in pc boards method of installation
The stud is pressed into the preset hole of the thin plate by the press (the diameter of the preset hole is generally slightly larger than the cylindrical outer diameter of the riveting stud), so that the periphery of the hole is plastically deformed, and the deformed part is squeezed into the rivet stud. In the undercut slot, the rivet stand is riveted on the thin plate, so as to form an effectively fixed internal thread on the thin plate.
standoffs for use in pc boards Packaging and transportation
1. Minimum order quantity: from 100pcs
2. Port of Loading: Shenzhen
3. Delivery time: 20-30 days, according to the negotiation with you to determine the delivery time.
4. Packed in PU bags, carton boxes, and pallets for bulk goods.
standoffs for use in pc boards FAQ
Q1: Can I have some samples?
A1: Of course no problem, we can provide free samples, you just need to pay the shipping fee.
Q2: How long is your production lead time?
A2: The goods will be finished within 20-30 days after the sample is confirmed. If it is urgent, we can expedite it according to your request.
Q3: What is your MOQ?
A3: Our MOQ is 1-1000 pieces.
Q4: How is your after-sales service?
A4: You can contact our sales staff anytime. We do our best to solve the problem. At the same time, your comments and feedback are very important to us.
Q5: How do you guarantee the quality?
A5: We have a QC (IPQC) department to control the quality from production to product delivery.
Q6: What is the working range and tolerance of your machine?
A6: Usually the working range of our machine is 1-55MM, and the tolerance can meet ±0.01MM.
Q7: Which payment methods do you accept?
A7: Paypal or T/T are the most popular, but we can follow your payment terms.
